LCF Left Hand Router Bits PCB 0.8mm-1.2mm For SMT Plate Splitting Machine

Name: LCF Left Hand Router Bits PCB 08mm12mm For SMT Plate Splitting Machine
Brand: DTECH or OEM
Price: 1 USD

Brand Name : DTECH or OEM

Model Number : LCF Router

Certification : ISO9001/TS16949

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000000PCS per 30days

Delivery Time : 2 weeks

Packaging Details : small Plastic box

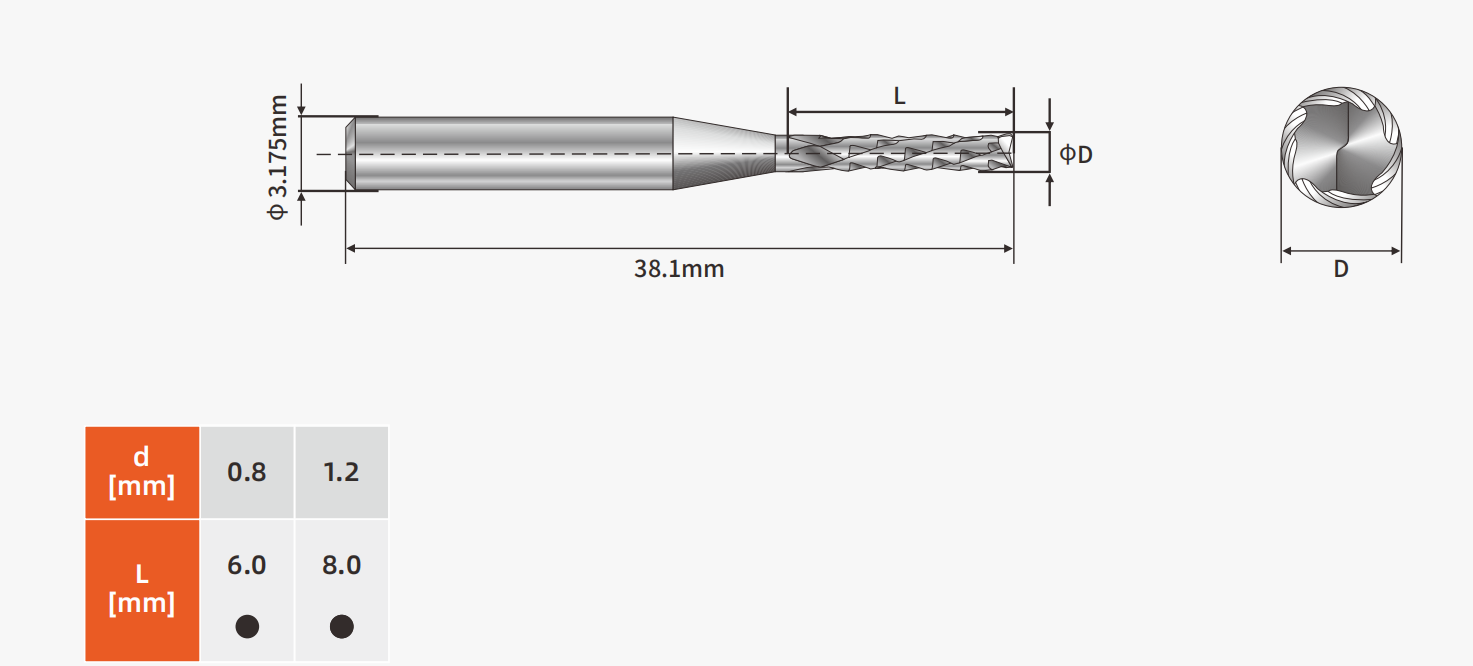

Shank Diameter : 3.175mm

Overall Length : 38.1mm

Diameter : 0.80mm-1.2mm

Body Length : 6.0mm-8.0mm

Drill Shape Type : LCF Router

Contact Now

These router used for SMT plate splitting machine

milling, under chip remove, surface chiping small.

PCB Left-Hand Router Use For SMT Plate Splitting Machine

ROUTER END TYPE

1. LCF Left Hand Router Bits PCB 0.8mm-1.2mm For SMT Plate Splitting Machine

.Flat bottom type: no rear blade which is suitable for periphery routers

that not used for drilling.

.Fishtale type:the most standard blade tip, it is also known as standard

routers , which is suitable for drilling routers.

.Drilling tip type: it can prevent the resistance brought by drilling ,so it is suitable

for the routers that needs drilling.

DRILL SHAPE TYPE

Ru type: It is suitable for NC shaping machines which is used for vacuum devices equipment since

the powder in the right cutting notch will be discharged upwards

Rd type: It is suitable for manual shaping machines since in the left cutting notch

will be discharged downwards
